S9 Speed Sensor
Quick Overview
- Non-contact, solid state device.
- Tight magnetic tolerance around zero Gauss level provides 50% duty cycle.
- Reads speeds 0 to 100 kHz.
- Digital output signal
- 4 to 24 VDC operation range
- Current sinking output
- 20ma continuous operation
- Reverse polarity protection
- Temperature compensated
- Operates from -40°C to 125°C
- Nickel-plated brass housing
- Photos
-
-
S9 Speed Sensor -
S9 Speed Sensor
-
- Mechanical Drawing Preview
Price:
Product Description
Part Number Configuration Guide
Download
Product Specifications
- Magnetic
-
Characteristic Symbol LimitsMin. Typ. Max. Units Operating Point BOP 15 50 75 Gauss Release Point BRP -75 -50 -15 Gauss Hysteresis BHYS 30 100 150 Gauss Maximum Field Exposure BMAX -800 800 Gauss Active Element Depth DP 0.058 Inch - Electrical
-
Characteristic Symbol Test Condition LimitsMin. Typ. Max. Units Supply Voltage VCC Operating 4.5 24 VDC Supply Current IS VCC = 4.5V; Output Open 4.7 8.0 mA Output Current IOUT VCC = 4.5V; Output Open 20 mA Output Saturation Voltage VOUT(SAT) B > BOP; IOUT = 20mA 150 400 mV Output Leakage Current IOFF B < BRP; VOUT = 24V 4.7 8.0 uA Rise/Fall Time tr / tf RL = 1.2k; CL < 33pF 1 us - Output Definition
-
Recommended Pull-Up Resistor Values Current, ISINK 5V Supply 12V Supply 24V Supply 1.2 mA 4.3K 10.0K 20.0K 2.5 mA 2.0K 4.7K 10.0K 5.0 mA 1.0K 2.4K 4.7K 10.0 mA 510Ω 1.2K 2.4K Output channels require customer supplied pull-up resistors unless internal pull-up option is selected.
- Wiring & Connection
-

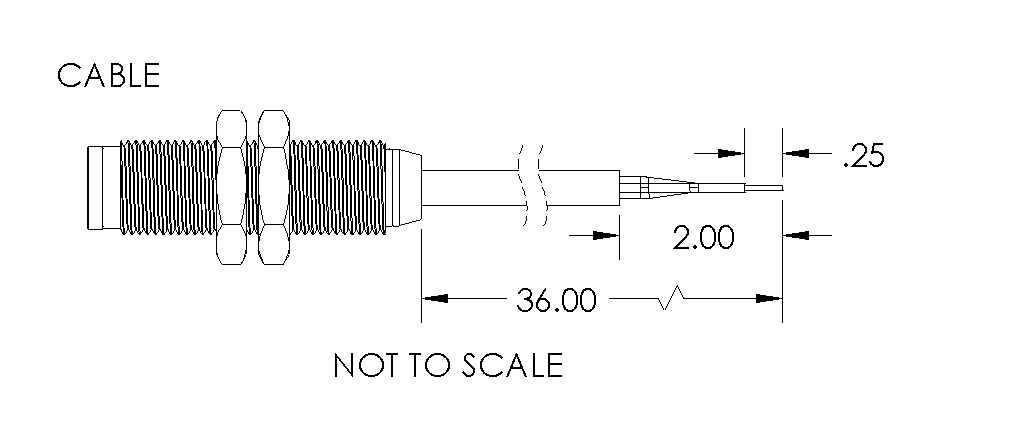

Standard Wiring Code Cable Output Black Gnd Blue +VCC Brown Wiring Option
Connector Options
