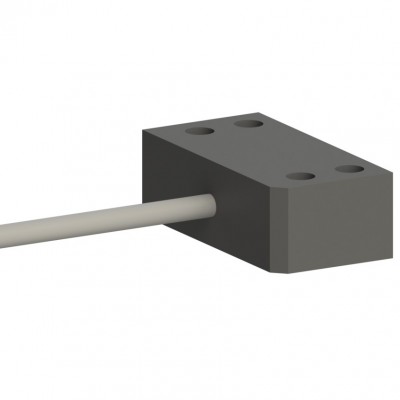

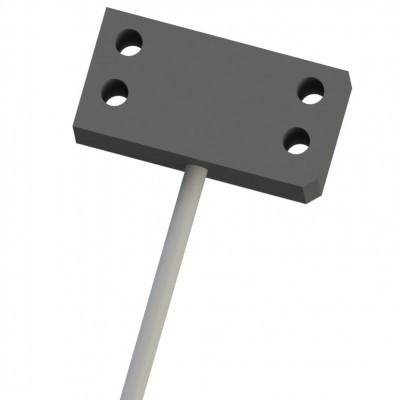

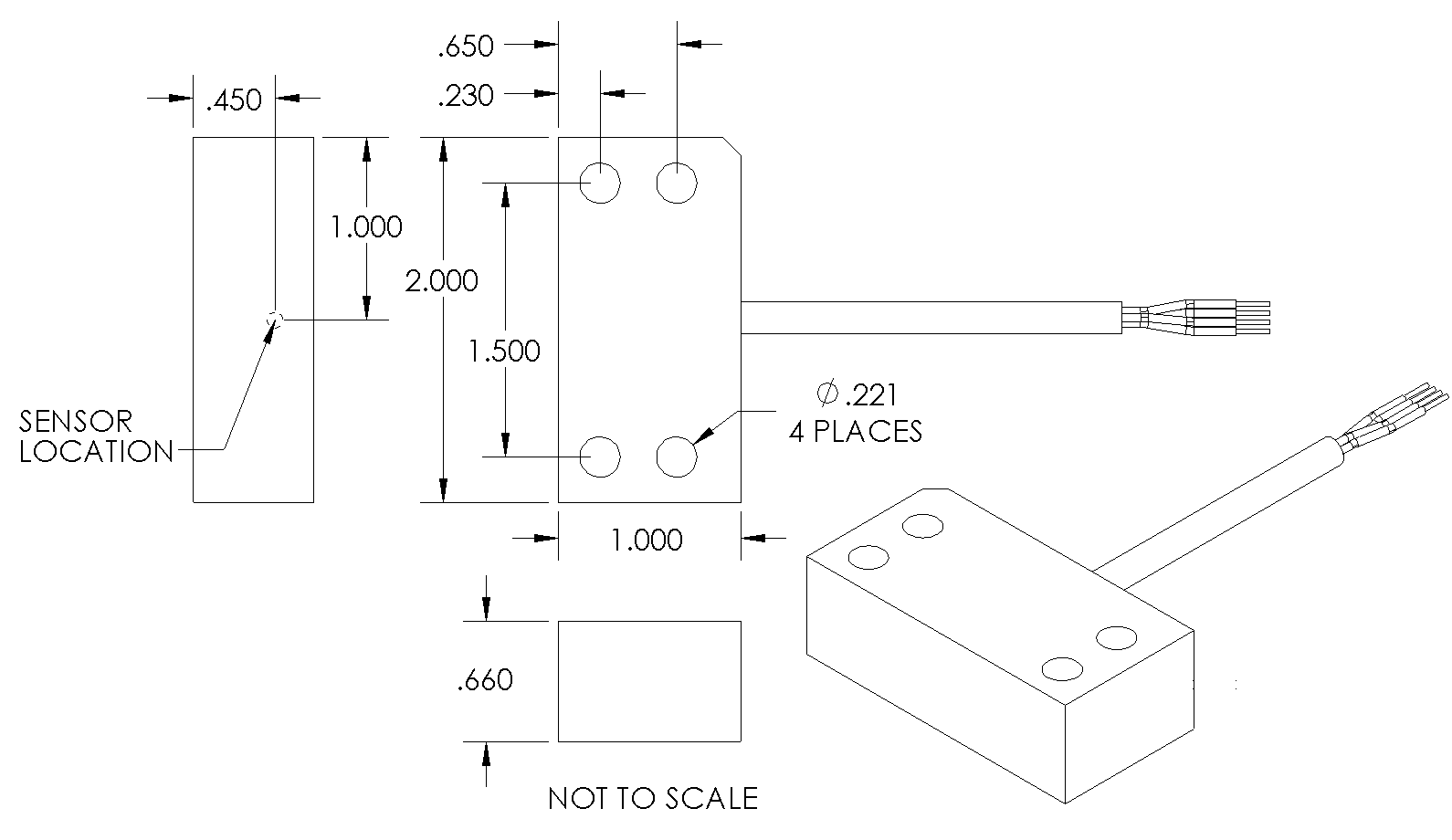

M4 Low Resolution Module

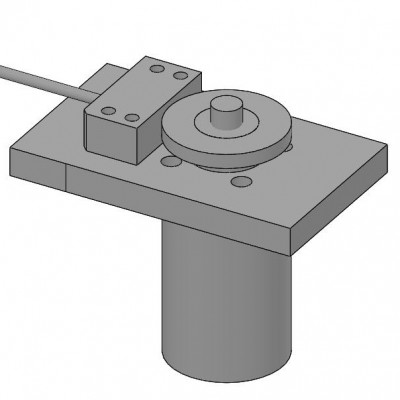

Product Description

Part Number Configuration Guide

Download

Product Specifications

Electrical

Absolute Maximums	Symbol	Rating	Units
Forward Supply Voltage	VCC	32	V
Reverse Supply Voltage	VRCC	-0.3	V
Output Voltage	VOUT	32	V
Continuous Output Current	IOUT	20	mA
Operating Temperature	TA	-40 - 125	°C
Storage Temperature	TS	-40 - 150	°C



Characteristics	Symbol	Test Condition	Min.	Typ.	Max.	Units
Forward Supply Voltage	VCC	Operating, TJ < 165 °C	4	-	24	V
Supply Current	ICC	VCC = 4 to 20V	1.4	3.0	5.6	mA
Output Current	ISINK	VCC = 4 to 20V	-	-	15	mA
Output Frequency	fOUT	VCC = 4 to 20V	-	-	30	kHz



Electrical Circuit

Output Definition

PPR Options
1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 14, 15, 16, 17, 18, 19, 20, 22, 25, 26, 30, 32, 40



Recommended Pull-Up Resistor Values
Current, ISINK	5V Supply	12V Supply	24V Supply
1.2 mA	4.3K	10.0K	20.0K
2.5 mA	2.0K	4.7K	10.0K
5.0 mA	1.0K	2.4K	4.7K
10.0 mA	510Ω	1.2K	2.4K

Output channels require customer supplied pull-up resistors unless internal pull-up option is selected.



Output Waveform

Target Magnet

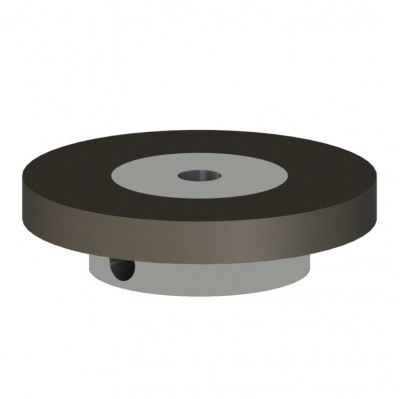

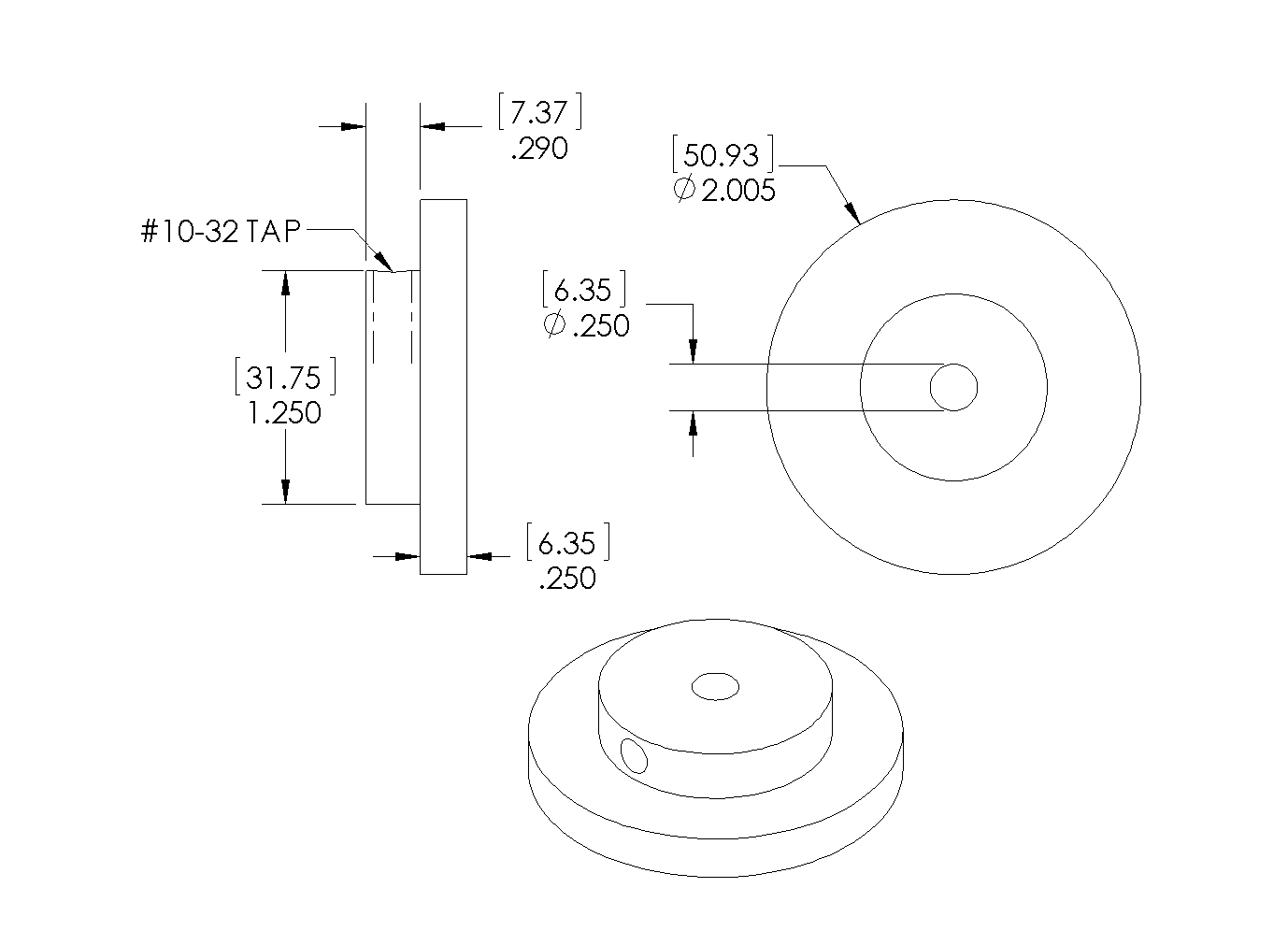

Aluminum Hub (B)



Bore Size (.inch)	Motor Shaft O.D. Size	NEMA Guide Shaft Tolerance	Magnet Bore MIN.	Magnet Bore MAX.
250	1/4 in	+0.0000"/-0.0005"	.2507"	.2516"
276	7 mm		.2767"	.2778"
313	5/16 in		.3134"	.3145"
315	8 mm		.3159"	.3170"
375	3/8 in		.3759"	.3770"
394	10 mm		.3949"	.3960"
473	12 mm		.4737"	.4748"
500	1/2 in		.5009"	.5020"
625	5/8 in		.6259"	.6270"
750	3/4 in		.7509"	.7520"
875	7/8 in		.8759"	.8770"
985	25 mm		.9859"	.9870"

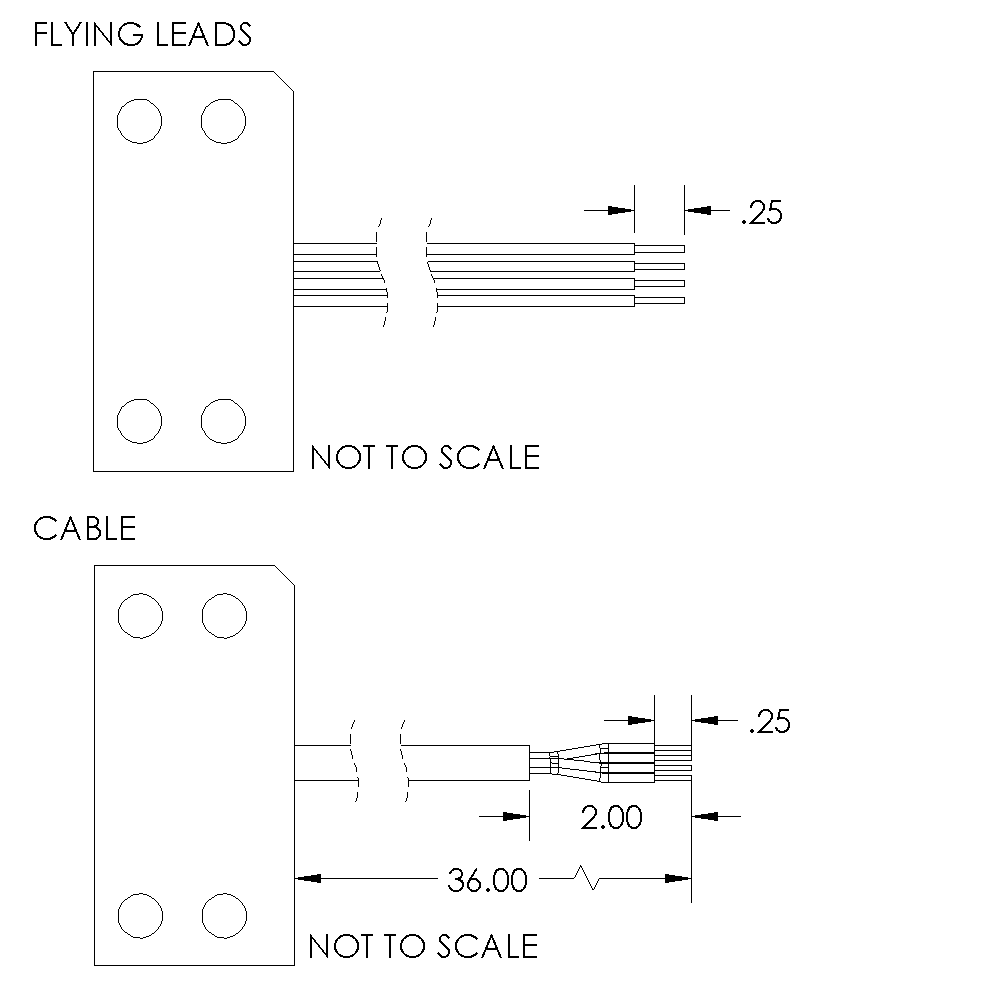

Wiring & Connection

Standard Wiring Code
	Flying Leads	Cable
Ch A	Yellow	Brown
Ch B	Blue	Orange
Gnd	Black	Black
+VCC	Red	Red



Wiring Options







Connector Options



Assembly Instruction

Assembly Instruction
